Kington Optic Co.,Ltd
|

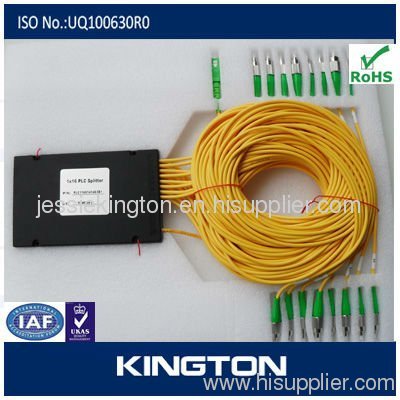

fiber optic plc splitter
| Price: | 10.0~100.0 USD |
| Payment Terms: | T/T |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
PLC Splitter-Bare Fiber PLC Splitter-With Fan-Out PLC Splitter-Mini Module PLC Splitter-Box Module PLC Splitter-Rack-Mountable
Fiber Splitter
Skype: jessiekington
PLC Splitter-Bare Fiber PLC Splitter-With Fan-Out PLC Splitter-Mini Module PLC Splitter-Box Module PLC Splitter-Rack-Mountable
PLC Splitter-Bare Fiber PLC Splitter-With Fan-Out PLC Splitter-Mini Module PLC Splitter-Box Module PLC Splitter-Rack-Mountable
Fiber Splitter
optic splitter
PLC splitter
Description:
PLC splitters are based on the Planar
Waveguide Technology. They provide a cost
effective and space saving networking
solution. They are key components in FTTX
networks and are responsible to distribute
the signal from central office to numbers of
premises. They have very wide range of
operating wavelength from 1260nm to
1620nm. With it's compact size, these
splitters can be utilized in in-ground and
aerial pedestals as well as rack mount
systems.
Waveguide Technology. They provide a cost
effective and space saving networking
solution. They are key components in FTTX
networks and are responsible to distribute
the signal from central office to numbers of
premises. They have very wide range of
operating wavelength from 1260nm to
1620nm. With it's compact size, these
splitters can be utilized in in-ground and
aerial pedestals as well as rack mount
systems.
Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanial Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV systems
Test Equipments
Performance Specifications:
Parameter:
Type | 1x2 | 1x 4 | 1x 8 | 1x 16 | 1x32 | 1x 64 | |
Fiber Type | 9/125 um SMF-28e or customized | ||||||
Operating Wavelength(nm) | 1260~1650 | ||||||
Insertion Loss(dB) | Typical | 3.6 | 6.8 | 10.3 | 13.5 | 16.2 | 20.5 |
Max | 4.0 | 7.5 | 10.8 | 14.0 | 17.0 | 21.5 | |
Loss Uniformity | Max | 0.7 | 0.7 | 1.0 | 1.5 | 2.0 | 2.5 |
Polarization dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | Min | 55 | |||||
Return Loss(dB) | Min | UPC 0 APC 55 | |||||
Operating Temperature(°C) | 40 ~85°C | ||||||
Storage Temperature | 40 ~85°C | ||||||
Port | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x 32 | 2x 32 | 1x64 | 2x64 |
WxHxL (mm) | 4x4x40 | 4x4x45 4x7x50 | 4x7x50 | 4x7x60 | 4x7x50 | 4x7x60 | 4x12x60 | |||||
